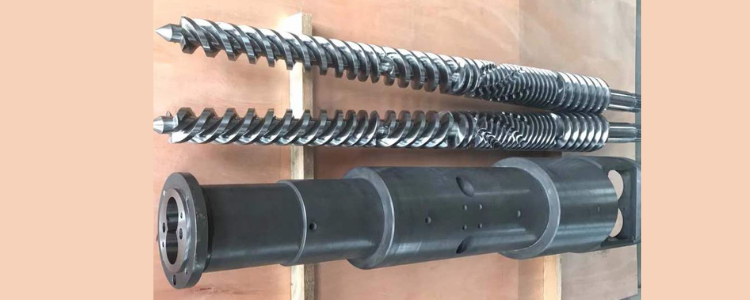

Conical Screw Barrel

Conical Screw Barrel

Inquiry Now

We are largest and reputed manufacturer and supplier of Conical Screw Barrel in Ahmedabad. We offer a broad range of product which used in various industrial applications.
Application: UPVC profile extrusion, CPVC pipe extrusion, Polymer Compounding, WPC extrusion

Regular Size Conical Screw barrels
Note: Screw can be designed for different materials and products:


Conical Twin NameEffective LengthThroughput Kg/HrRPM
35-77
81040-705-50
45-90
99050-805-45
50-1051070100-1504-45
51-105
1220100-1504-45
55-1101220120-1804-40
60-1251320150-2004-40
65-1201440200-2504-40
65-1321440200-2504-40
70-1401460220-3004-40

75-150 Oil Cooled/Air Cooled1480250-300 Kg/Hr4-35
80-1431800300-3604-35
80-1561660300-3604-35
92-1882000400-5004-35



Materials:

EN41B Nitriding steel (Musco) (default), German Imported 41CrMoAl7 Equivalent, China's 38CrMoAlA also available on special request.


Hardfacing alloy Stellite and Colmonoy

Hardfacing Superalloys- Inconel, Hastelloy


Gas nitriding: Thickness from 0.5 to 0.7 mm, hardness ~ 60-75 HRC ~ 1000 HV.

Plasma Nitriding on special request also available.

Hardchrome plating as default process in all screw.

Bimetallic treatment with HSS M type or Tool steel D2.


Ultimate solution for abrasive and wear resistance WCNi Carbide Matrix composite with 88% Tungsten

Production time: Within 2-4 weeks depending on the complexity of the part.


Features

  • Long Durability
  • Corrosion/Abrasion Resistant
  • Competitive Price


Read more about Integrated Bimetallic Screw Barrel
