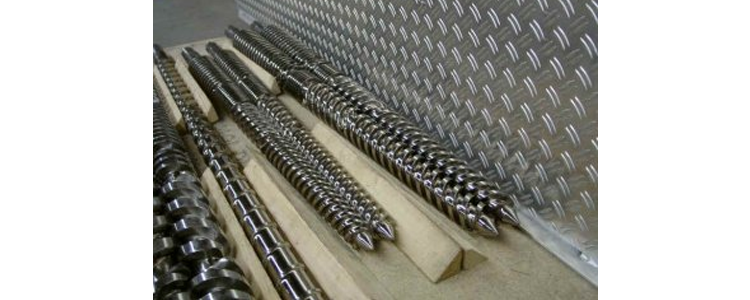

Plastic Machine Screw Barrel

Plastic Machine Screw Barrel

Inquiry Now

Our High precision and fair price policy made us the most reliable Screw Barrel manufacturing company in India.

We make screw barrel for
General Plastic extrusion: Visit Single & Twin
Injection Moulding: Visit: Injection molding screw, Ring plunger set
Blown Film extrusion: Visit page, Tarpaulin, Multilayer, ABA
Blow Moulding: Visit Page HDPE, LDPE, Rigid packaging
Cast Extrusion: India's first to make Polyester film cast extrusion screw barrel, visit page
Recycling: India's number 1 recycling extrusion feed screws, visit page
PET, ABS, PS, PC type Engineering Plastic Extrusion, Injection Moulding
Nylon Extrusion Nylon Glass Fibre Injection Molding
Compounding Twin, Single, Segmented Type
Lab Extruder screw made of Stainless Steel, PU, PTFE
Powder Coating extrusion
Post Industrial, Post Consumer Recycling for example PET recycling: Visit page
Foam Extrusion
Petrochemical plants screw like large diameter above 250 mm
Call or whatsapp +91-8128381431, 9924225214, 9558327739

All products are manufactured using advanced technology and machine which provide various features such as strong ability, durability, exact fitting, easy to use and remove, specially designed to meet customers specific need and requirements.

Screw diameter 22 mm to 250 mm

Screw length up to 5000 mm in one piece and 9000 mm in Two piece.

Barrel OD upto 350mm.


Materials:

EN41B Nitriding steel (Musco) (default), German Imported 41CrMoAl7 Equivalent, China's 38CrMoAlA also available on special request. SAE Grade 1.8509 Steel and SAE Grade 1.8519 Steel/ AISI 4140 Steel, SS-304, SS-316, SS-430 and many precious specially imported steel depending upon application and clients request.


Hardfacing alloy - Stellite™ and Colmonoy ®

Hardfacing Superalloys - Inconel ®, Hastelloy ®


Gas nitriding: Thickness from 0.5 to 0.7 mm, hardness ~ 60-75 HRC ~ 1000 HV.

Plasma Nitriding on special request also available.

Hardchrome plating as default process in all screw.

Bimetallic treatment with HSS M type or Tool steel D2.


Ultimate solution for abrasive and wear resistance WCNi Carbide Matrix composite with 88% Tungsten

Method: HVOF, HVAF, TPA, Sprayweld, Sintering

Production time: Within 2-4 weeks depending on the complexity of the part.
